제품 정보

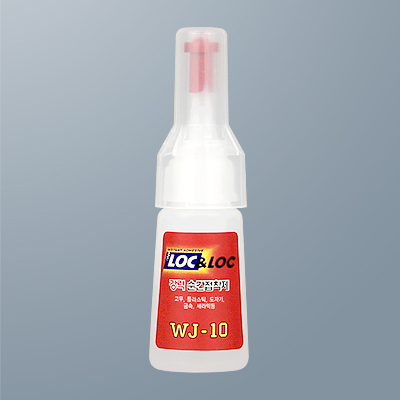

| Product | WJ-10 |
|---|---|
| Code | SLL-WJ10 |
| Volume | 5g |
| Products Summary | Low-viscosity(2~3cps), Fast Adhesion Suitable for metals, rubber, plastics,ceramics, etc |
Product description
- Low viscosity (2 ~ 3cps) |
 |
 |
Type : WJ-10 5g |
■ Feature
| Appearance | Clear Liquid |
| Viscosity | 2~3cps |
| Specific Gravity | 1.1 |
| Ingredients | Etyl cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 85℃ |
■ Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| vinyl chloride | 5 ~ 10 | 6 |
| Metal Plate | 10 ~ 20 | 15 |
| Aluminium | 5 ~ 15 | 8 |
| ABS | 5 ~ 10 | 6 |
| PC | 5 ~ 10 | 8 |
| NBR | 5 ~ 10 | 5 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
■ Packing Unit
- 5g-30ea / box, 900ea / carton■ How to use WJ-10
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
