제품 정보

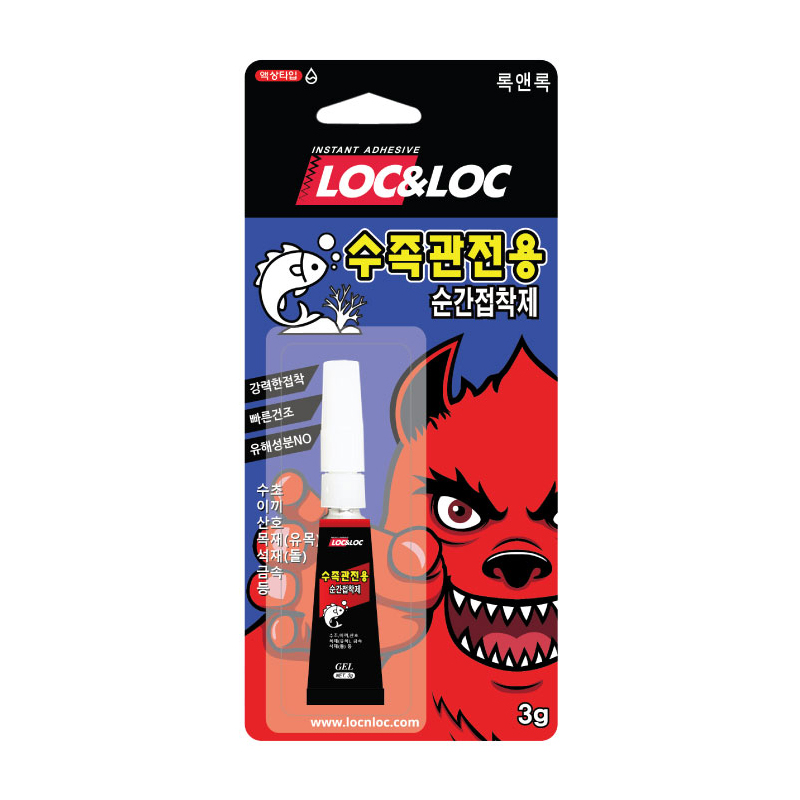

| Product | Aqua jel instant adhesive |
|---|---|
| Code | CTB-AQ-3 |
| Volume | 3g |
| Products Summary | Aquarium |
Product description
| - Aqua Gel Glue is a special product that can be used underwater when
fixing coral reefs and sculptures that decorate fish tanks and aquariums
with. - Possible to be bonded to almost any material such as metal, rubber, plastic, wood, etc. (Possible to be used in seawater, salt water, and other water, and flexibie after curing) |
 |
Type : Aqua gel 3g |
Feature
| Appearance | Clear Liquid |
| Viscosity | 100,000~ 200,000 cps |
| Specific Gravity | |
| Ingredients | Etyl cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 85℃ |
Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| Chloroprene | 8 ~ 15 | 5 |
| Metal Plate | 50 ~ 100 | 180 ~ 200 |
| Stainless Steel Metal Plate | 50 ~ 100 | 250 ~ 450 |
| ABS | 10 ~ 60 | 50 ~ 150 |
| Acrylic | 15 ~ 20 | 60 |
| NBR | 5 ~ 20 | 50 ~ 110 |
| Wood | 15~ 25 | 100 |
| Leather | 15 ~ 20 | 90 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
Packing Unit
- 3g : 240ea / cartonHow to use Aqua jel
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
